DRAUGHT SURVEY

Independent Cargo Quantity Determination by Draught Survey

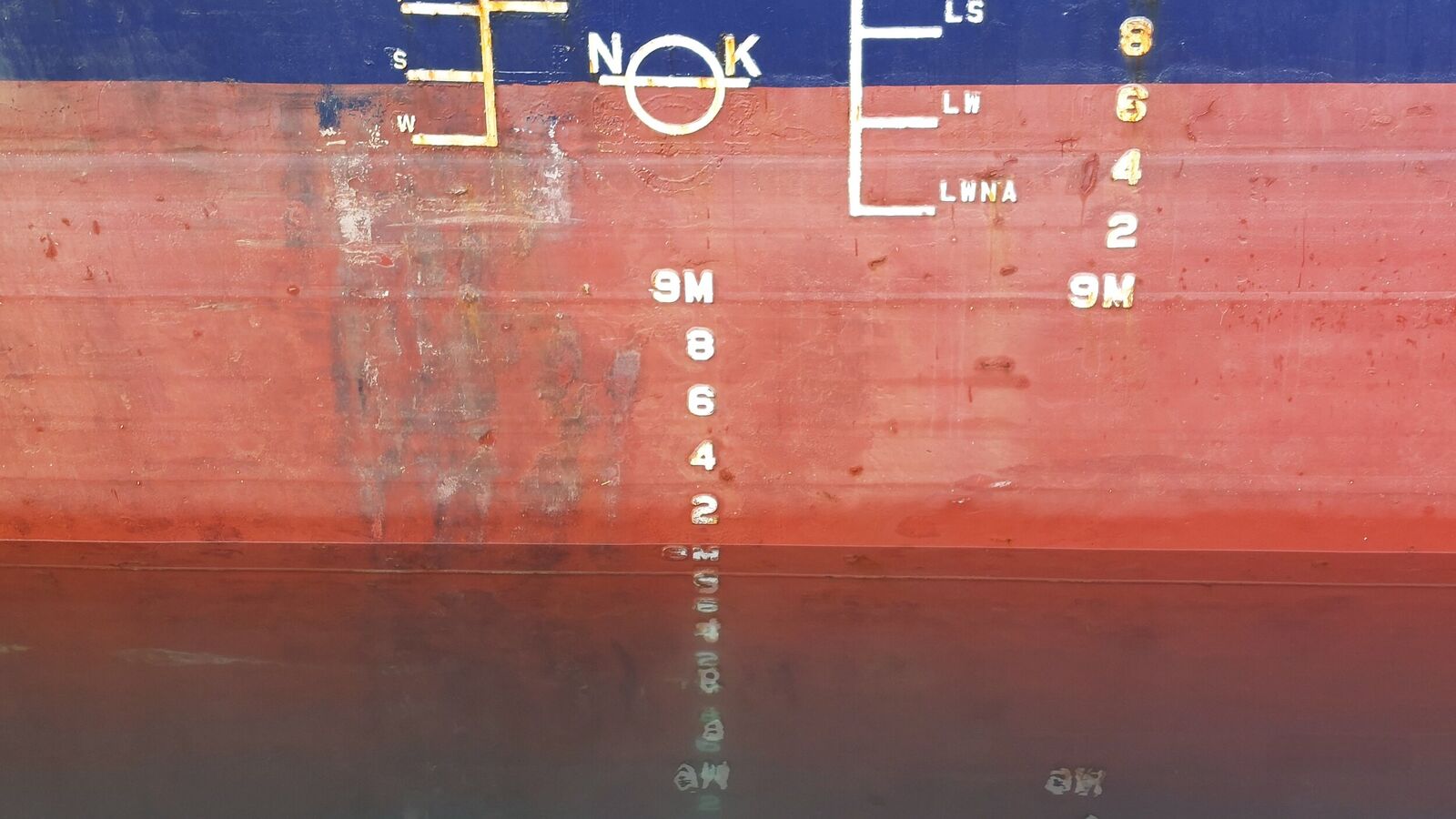

Draught marks at the middle, ship's load line marks

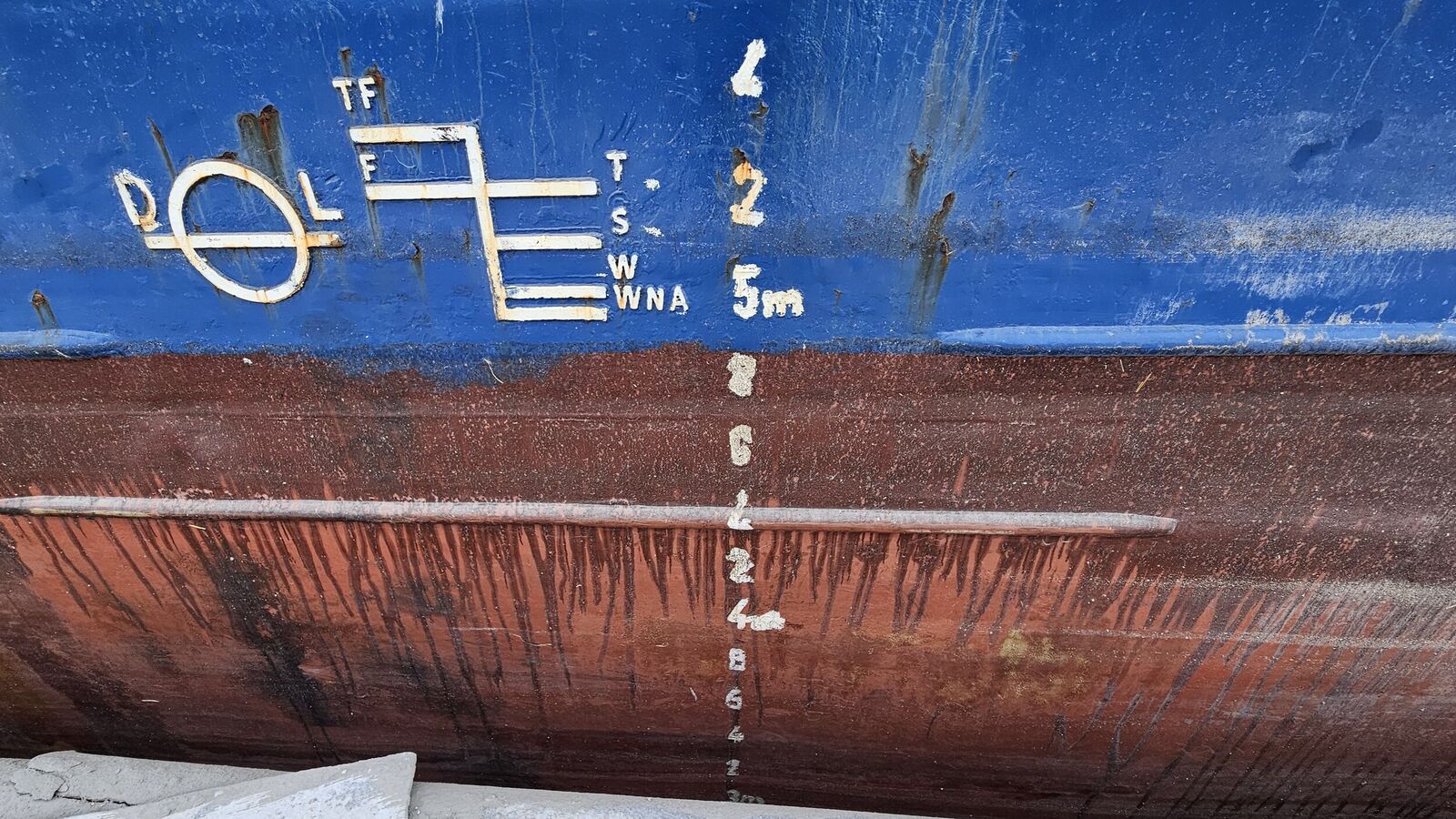

Draught marks at the middle, load line marks, note poor condition of draught marks

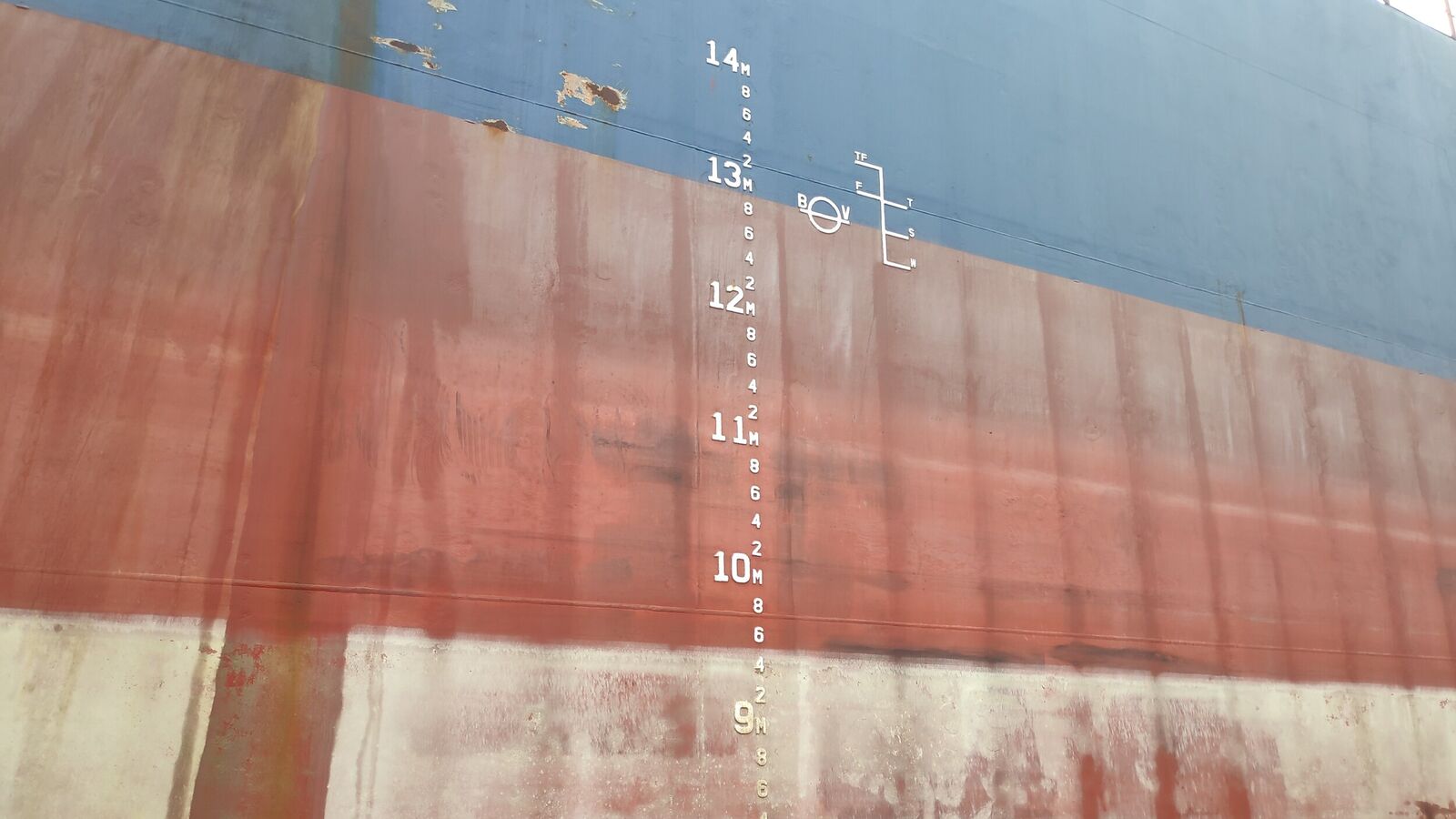

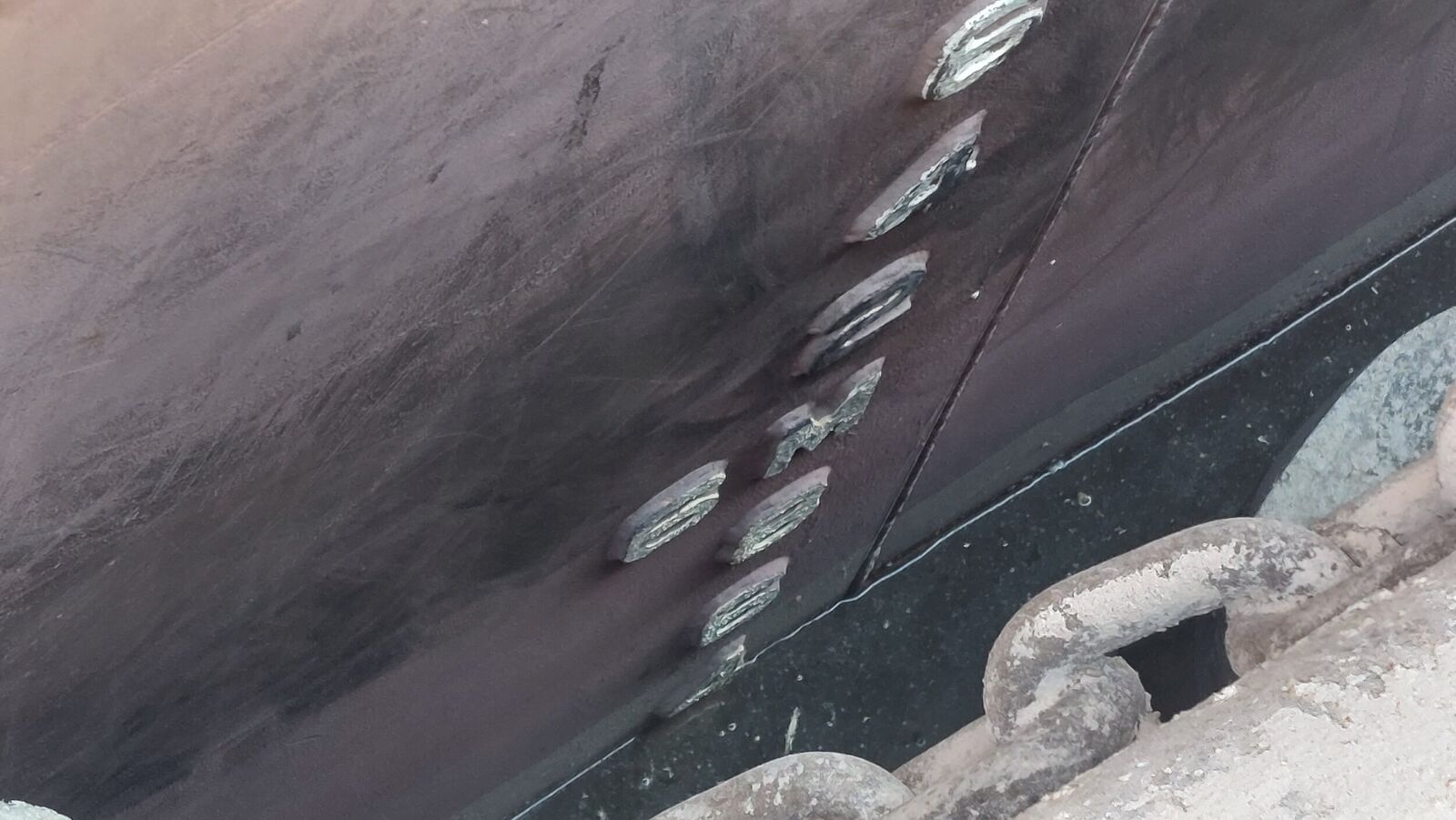

Midship draught marks, condition of load line marks and draught marks

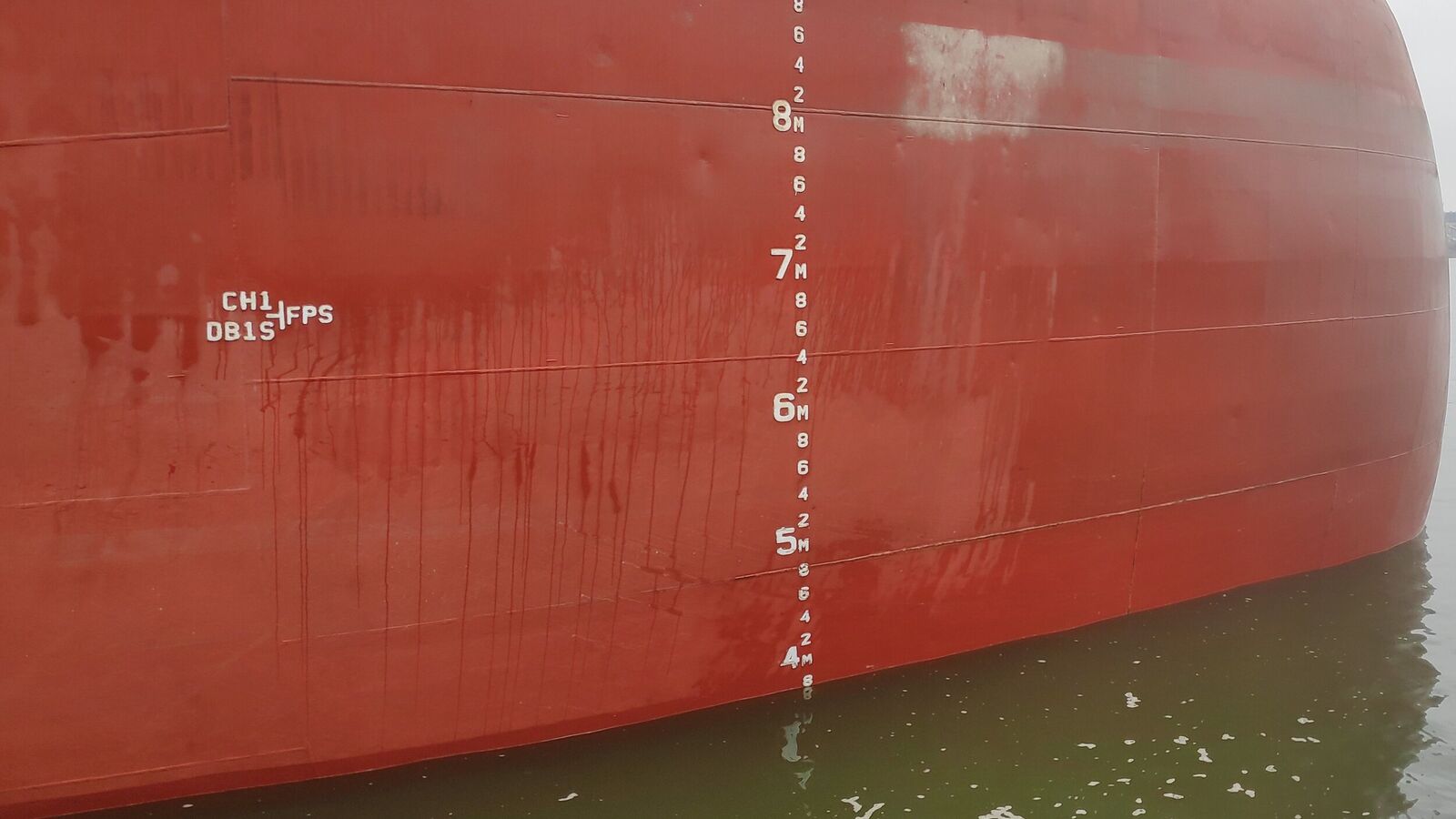

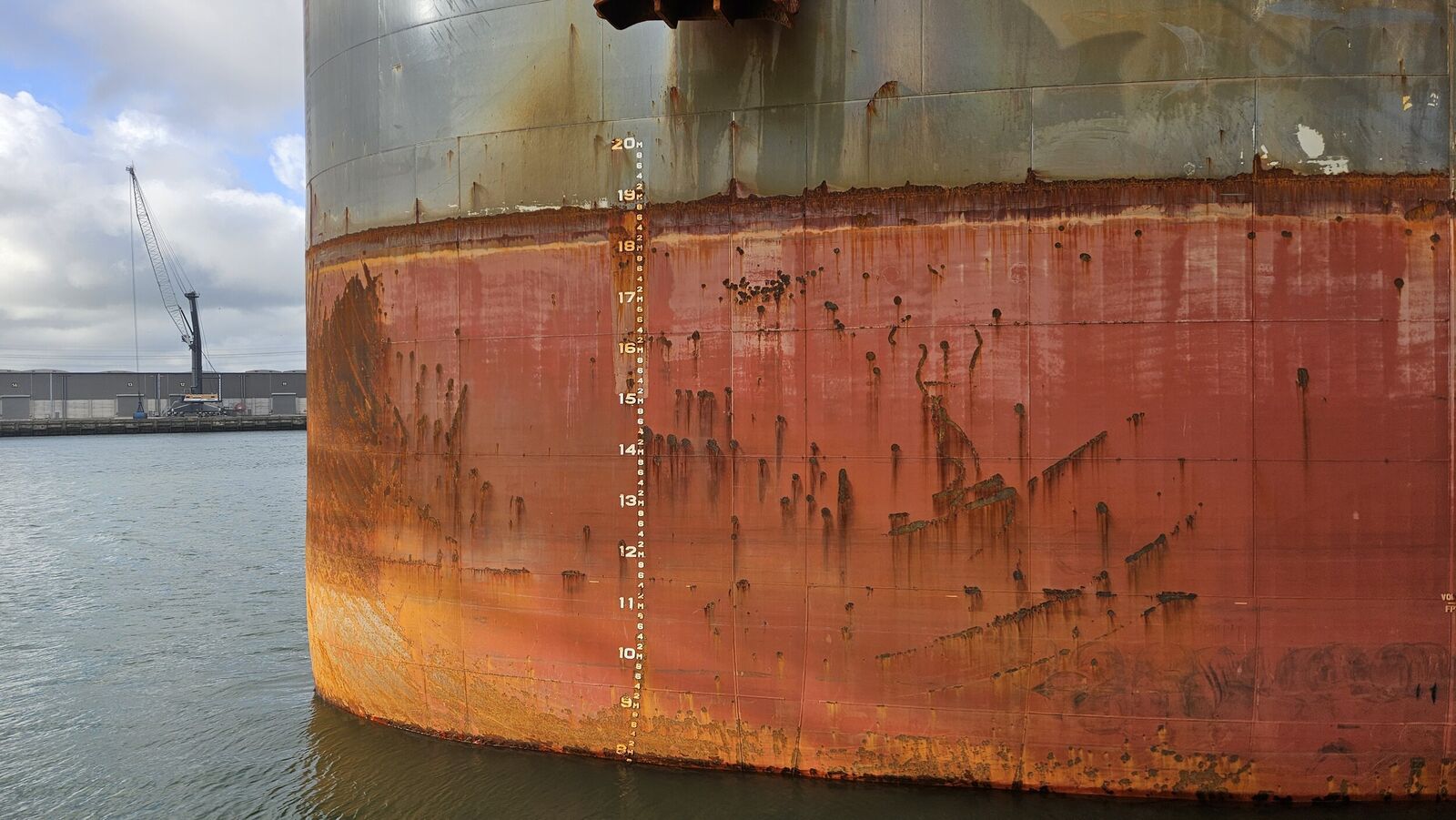

Forward draught marks at the vesse's bow

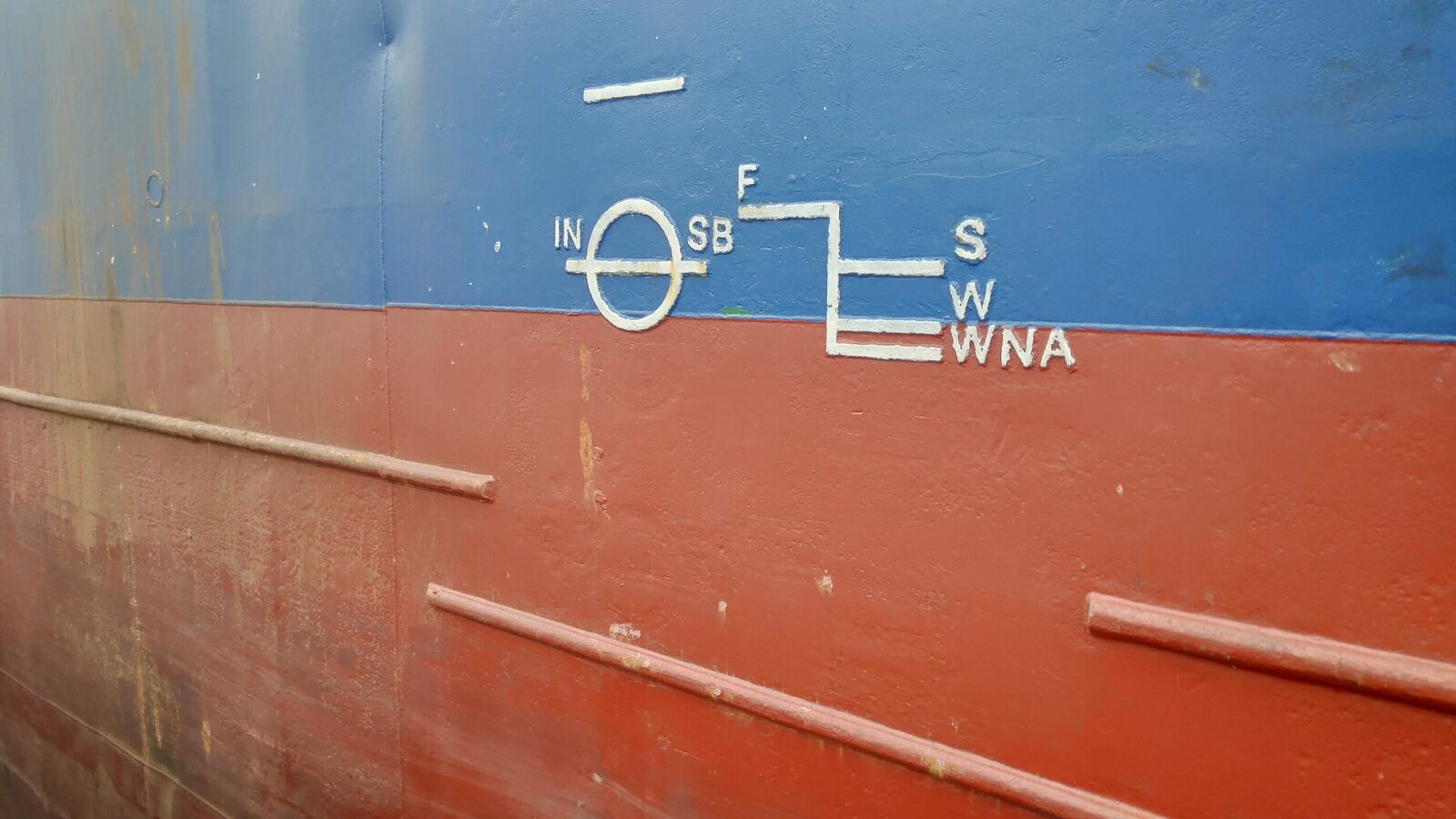

Load line marks at the middle, note lack of draught marks

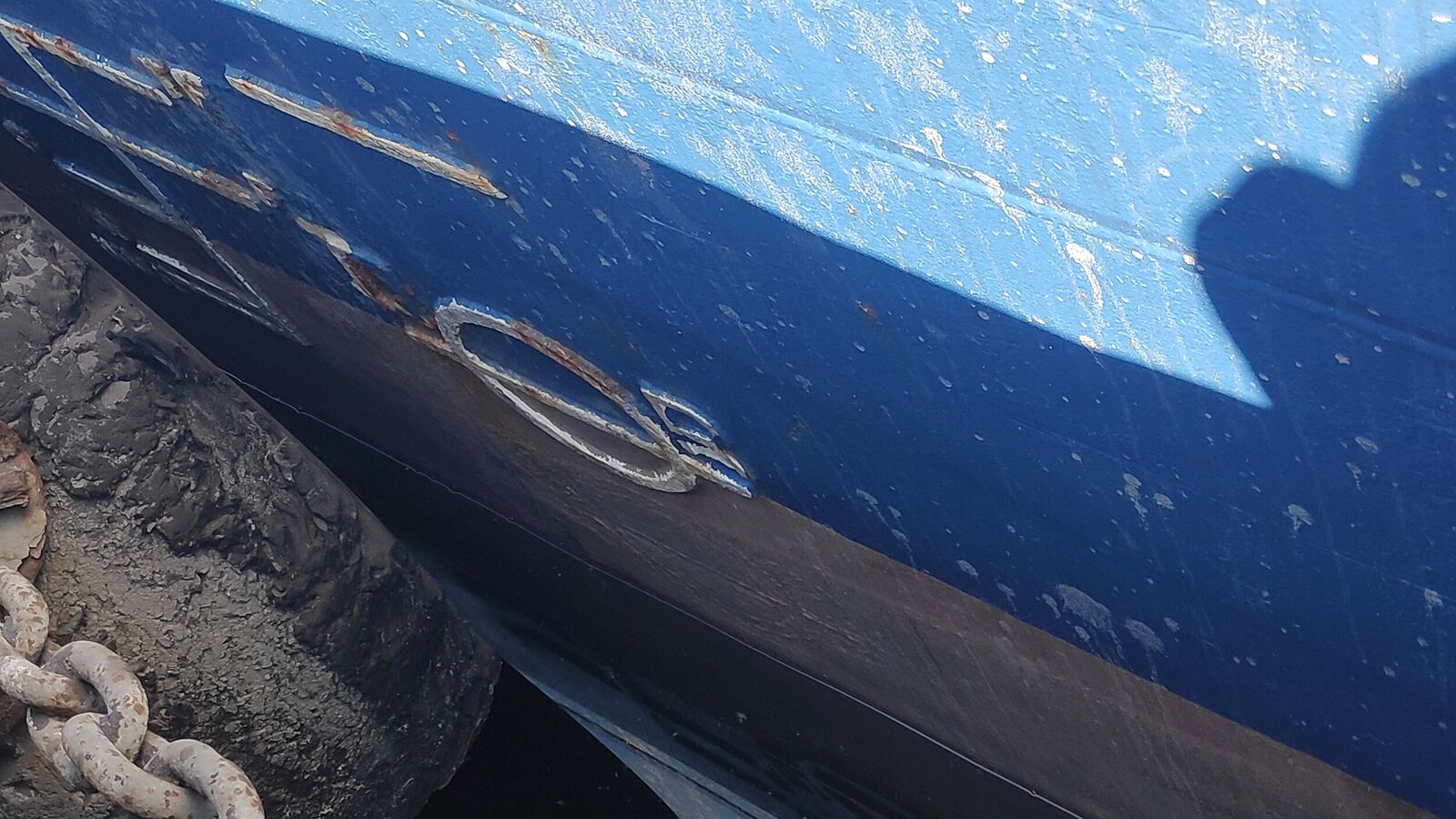

Lack of draught marks at the middle, draught reading from load line mark

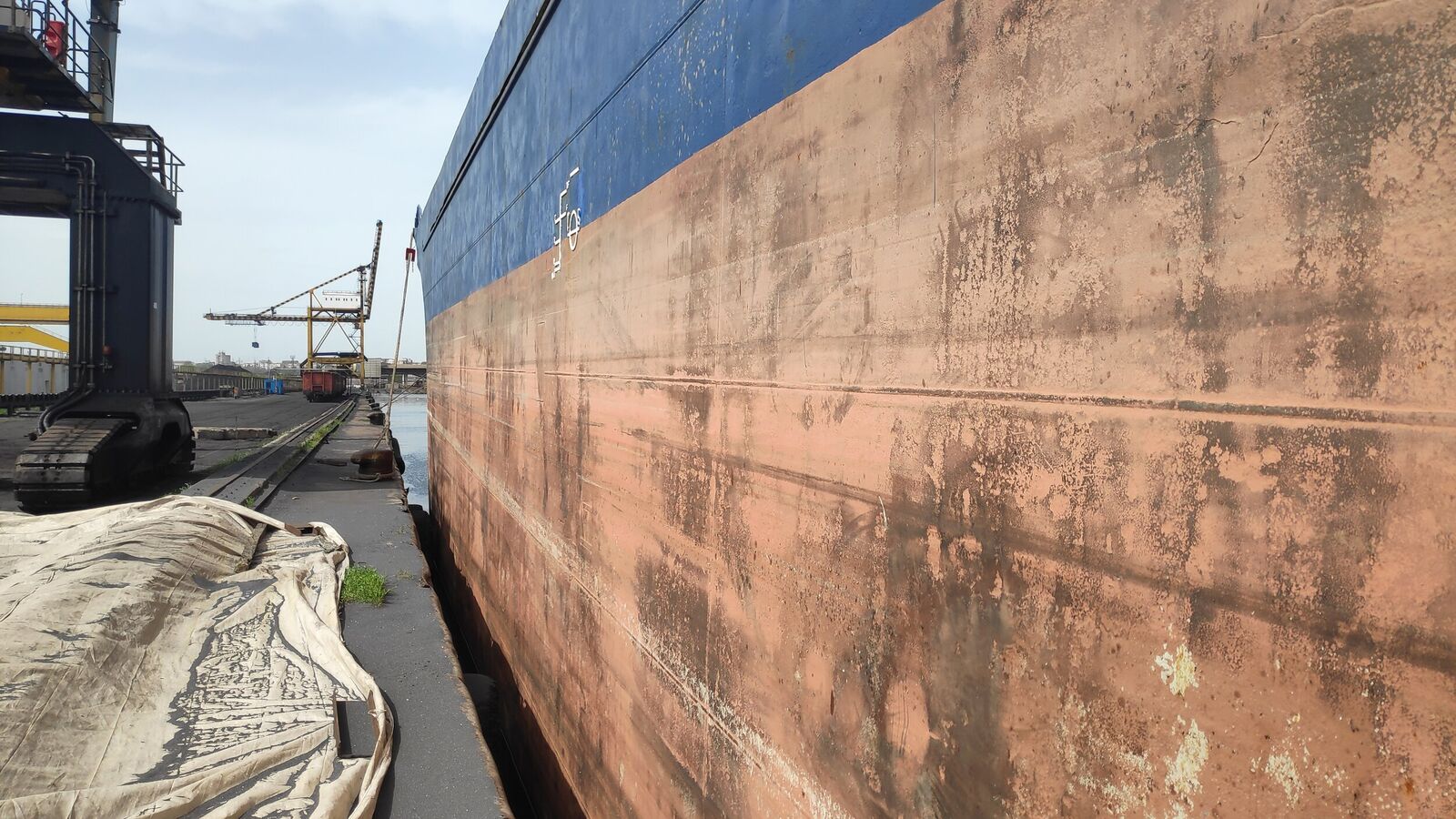

Lack of draught marks at the middle, draught marks to be measured from load line mark

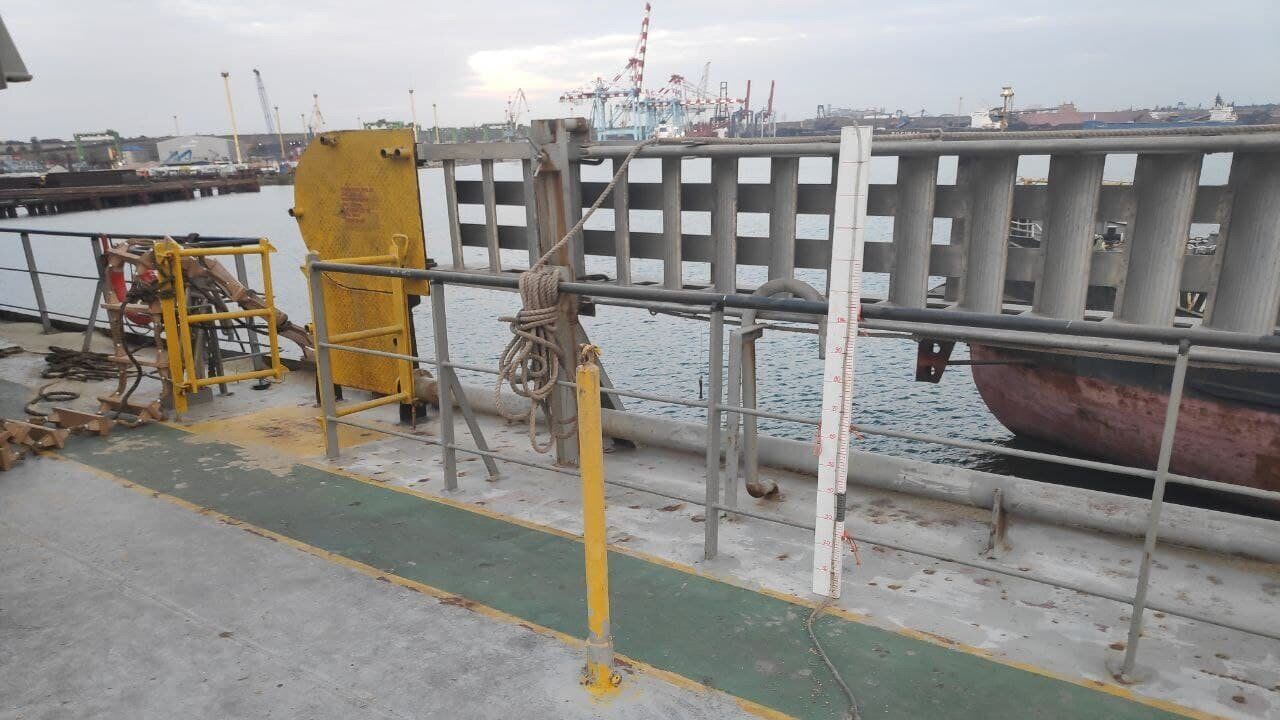

Manometer on main deck at midship for intermediate draught readings

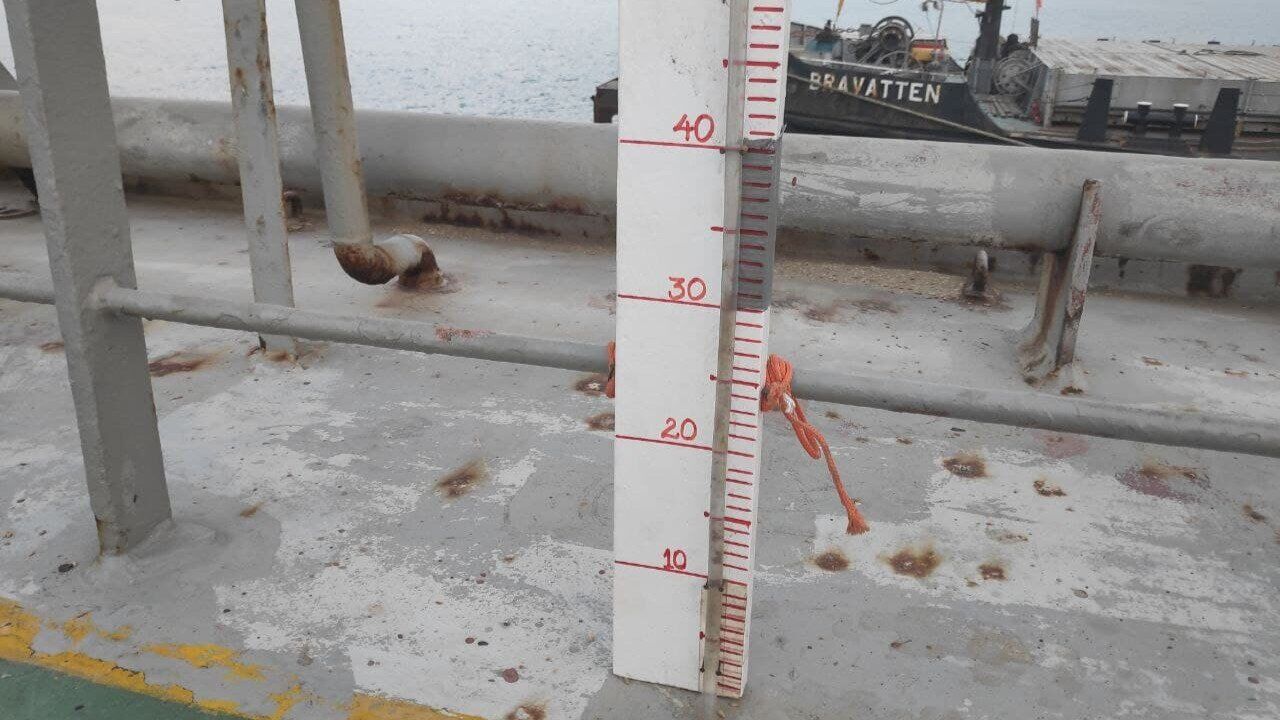

Arrangement of manometer at the middle with hose ends at PS & SS

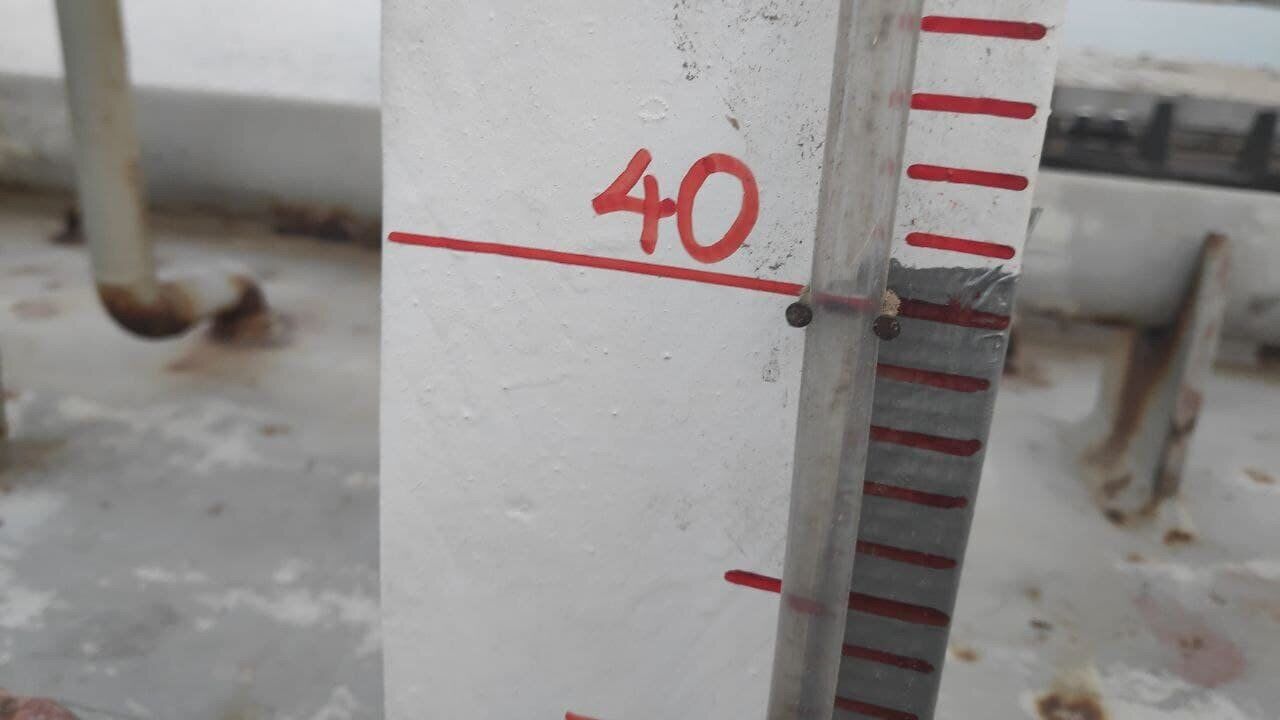

Readings of manometer arranged at the midship

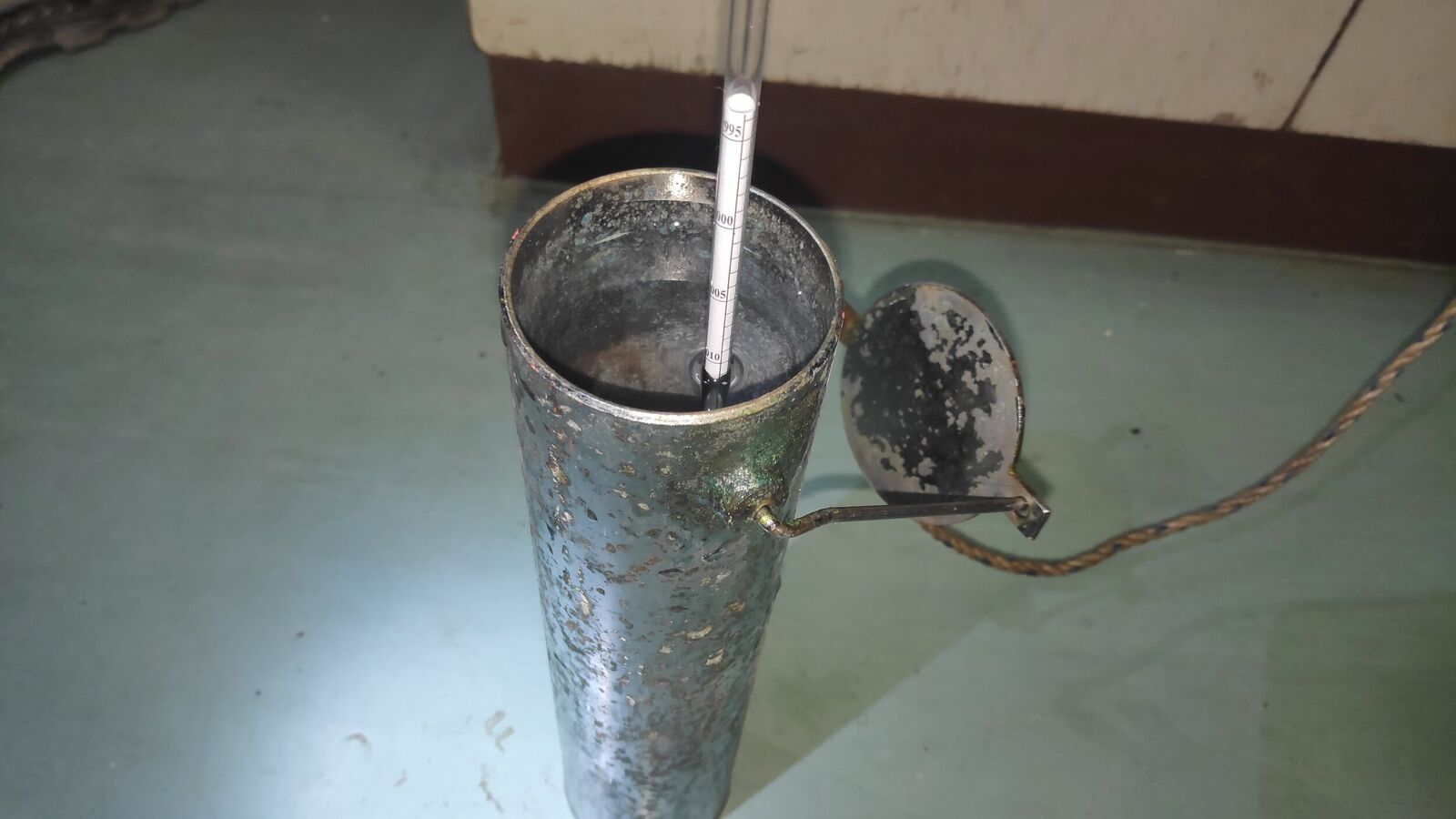

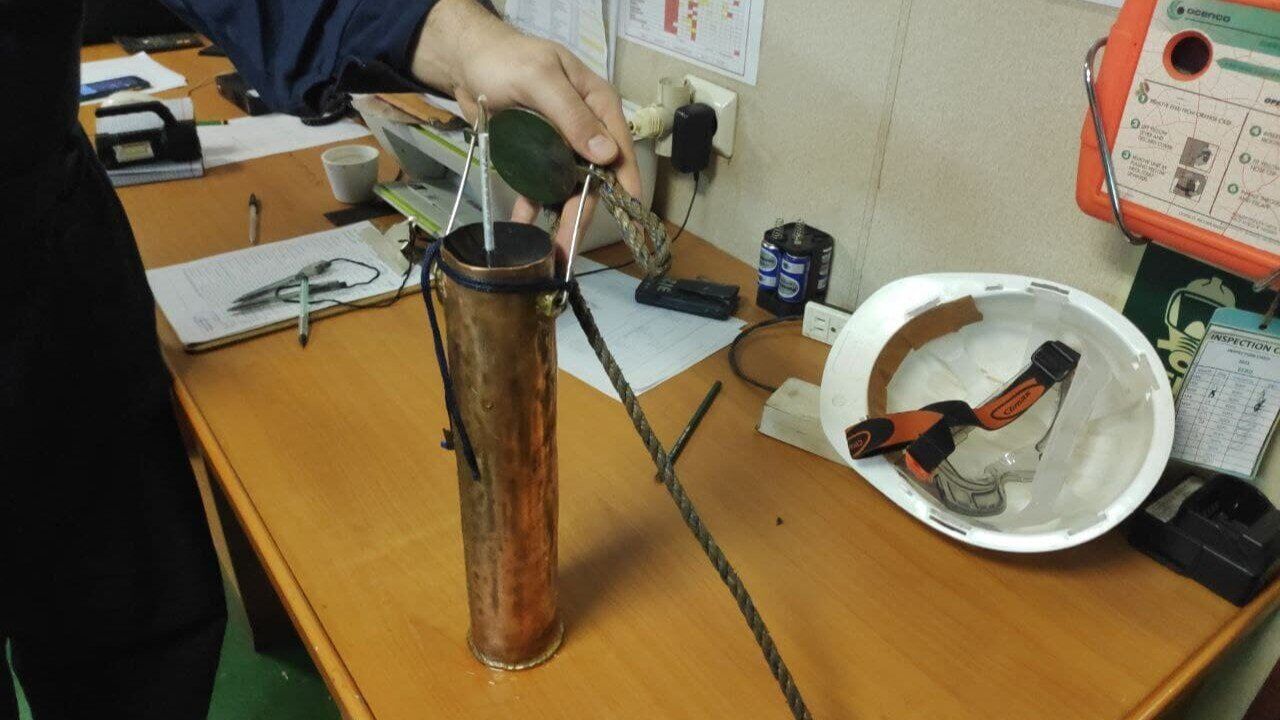

Sample of sea water and checking density

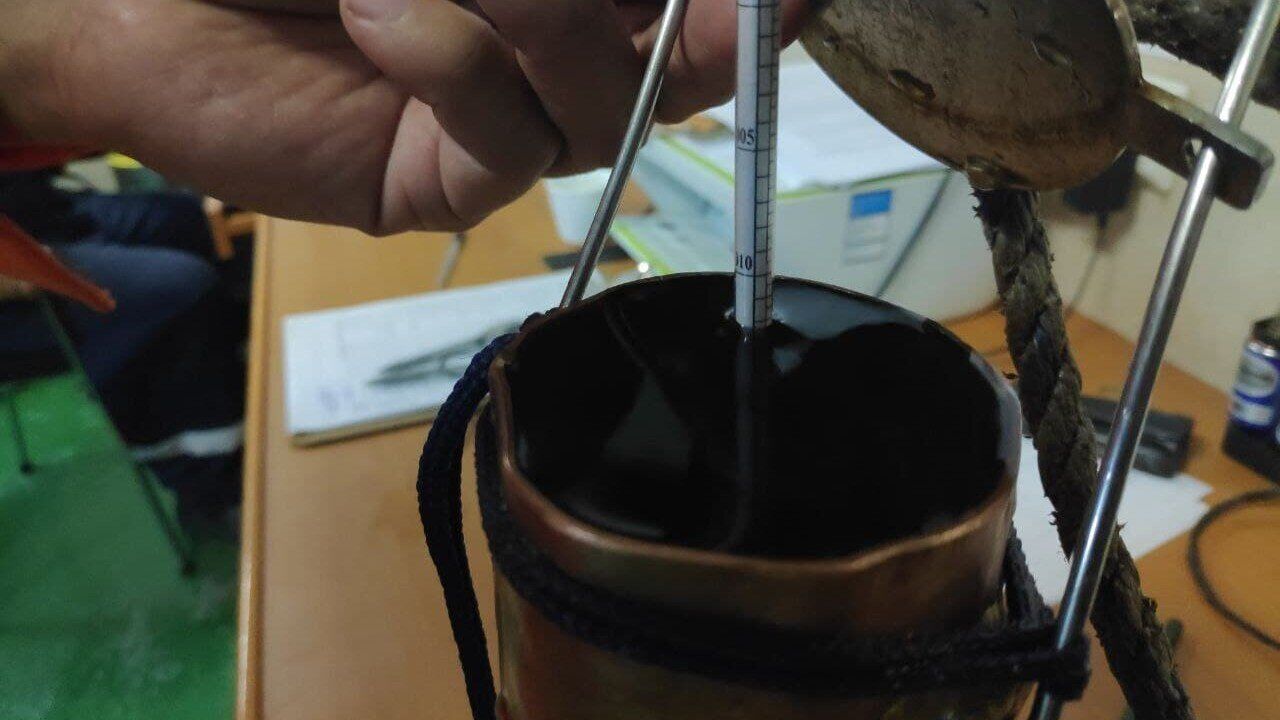

Hydrometer in the sampling bucket, checking sea water density

A draught survey is a method used to determine the quantity of bulk cargo loaded or discharged by measuring the vessel's displacement before and after cargo operations.

WHEN REQUIRED

An independent draught survey provides an accurate determination of cargo quantity and helps shipowners, charterers, traders and cargo interests verify loaded or discharged weights, minimising the risk of quantity disputes and shortages.

SERVICE INCLUDES

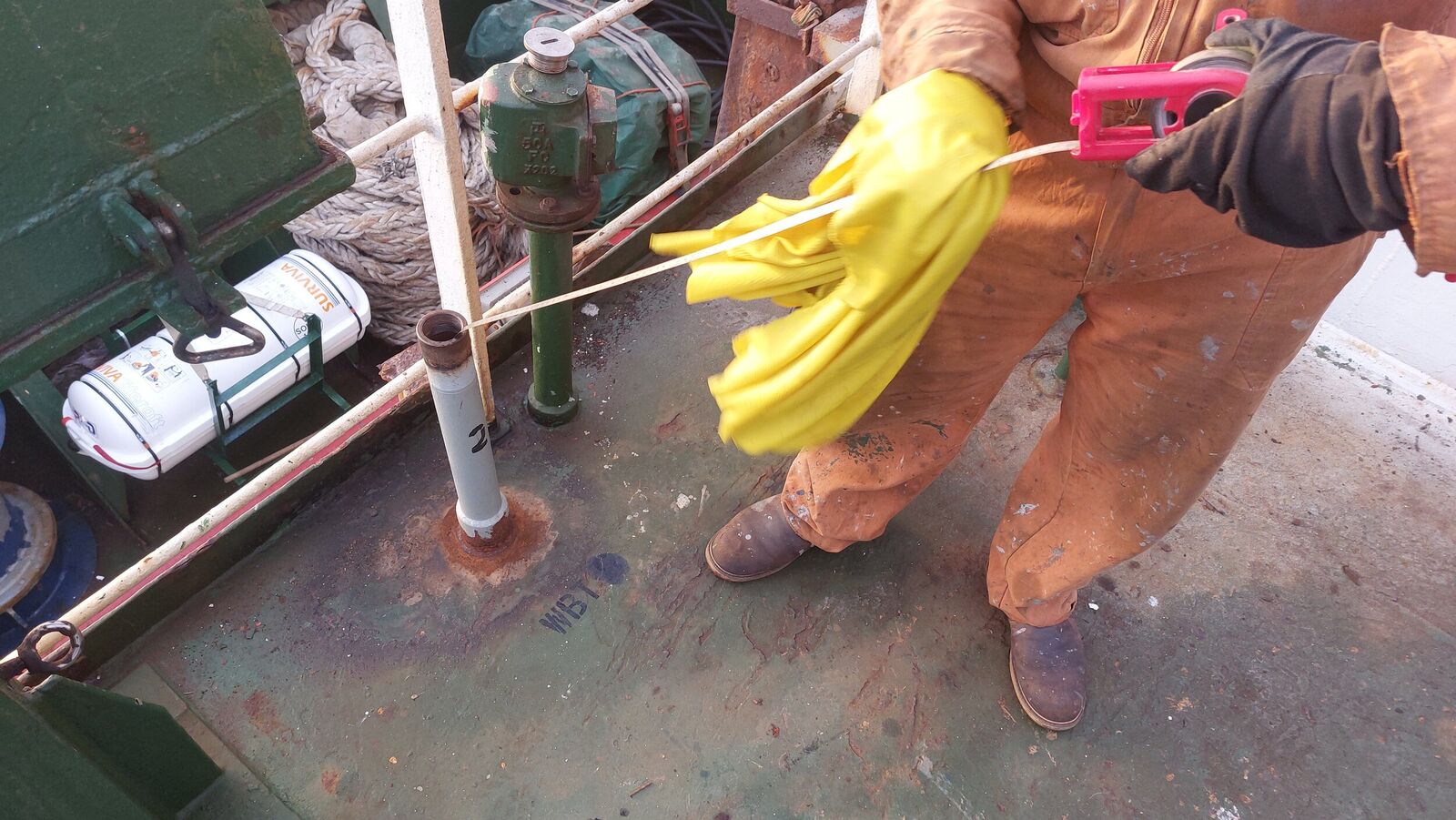

Initial and final draught surveys, including reading vessel draughts, soundings of ballast water and fresh water tanks, determining the dock water density by certified densimeter
Intermediate calculations using Class approved vessel's hydrostatic tables and ballast trim calibration tables
Cargo quantity calculations
Preparation of survey report

REPORTING

The draught survey report contains the cargo quantity, together with all observations, measurements, and intermediate calculations performed during the initial and final draught surveys.
